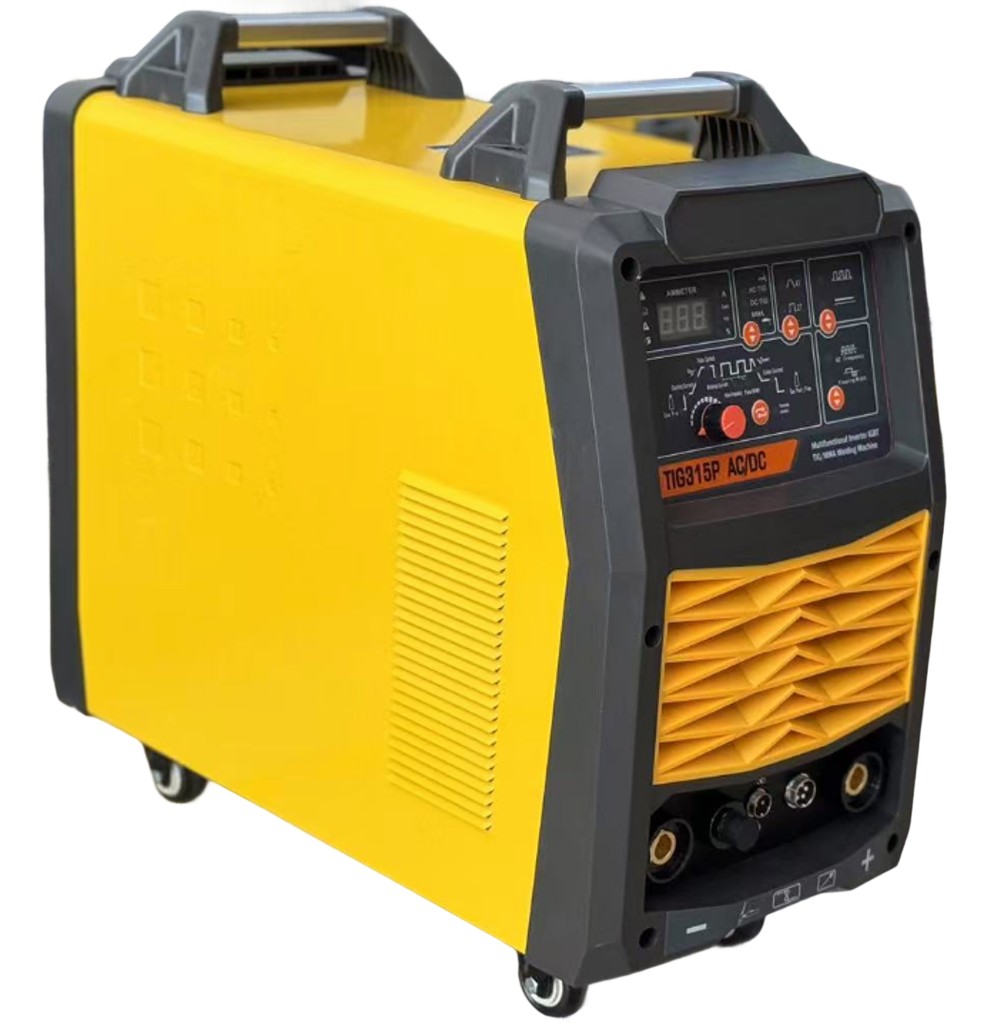

TIG315P AC/DC
High-Performance AC/DC TIG. Water-Cooled Power.
Technical Specifications
| Input Voltage | Single/Three-phase 380V ±15% |
| Output Current | 300A (TIG) / 300A (MMA) |
| Duty Cycle | 60% @ 300A |
| AC Frequency | 10-300Hz adjustable |
| Cooling | Integrated water-cooling system |
| Weight | ~35kg |
| Processes | AC/DC TIG, MMA |
Key Features
- Integrated water-cooling for extended duty cycles
- AC/DC capability for aluminum and exotic metals
- Adjustable AC frequency (10-300Hz)
- Pulse function for thin material control
- HF start for contamination-free arc initiation
Applications
Quick Facts
| Model | TIG315P AC/DC |
| Input Voltage | Single/Three-phase 380V ±15% |
| Output Current | 300A (TIG) / 300A (MMA) |
| Duty Cycle | 60% @ 300A |
| Weight | ~35kg |
| Application | Stainless Steel Welding |
| OEM Available | Yes (MOQ 50 units) |
Detailed Description
A high-performance AC/DC TIG welder with integrated water-cooling system, delivering 300A of precise arc control for aluminum, stainless steel, and exotic alloys.
Advanced pulse functionality (up to 500Hz) enables ultra-low heat input welding on thin-gauge materials, while the AC balance control cleans oxide on aluminum without overheating the workpiece.
The built-in water cooler circulates through the torch and power connections, enabling sustained high-amperage welding on thick aluminum plate and titanium without thermal cycling interruptions.
Frequently Asked Questions
The TIG315P AC/DC supports Single/Three-phase 380V ±15%. This makes it suitable for various countries and power supply conditions.
The TIG315P AC/DC delivers 300A (TIG) / 300A (MMA). This range provides flexibility for different welding/cutting requirements.
The TIG315P AC/DC has a duty cycle of 60% @ 300A. This means it can operate continuously at the rated current for the specified time before requiring cooling.
The TIG315P AC/DC weighs approximately ~35kg, making it highly portable and easy to transport between job sites.
Our standard MOQ is 10 units for the TIG315P AC/DC. For OEM/private label orders with custom branding, MOQ is 50 units. Contact us for detailed pricing and terms.
Standard delivery time is 7-15 days for in-stock models. For OEM orders with custom packaging or branding, delivery is 20-30 days. We ship from Qingdao Port, China.
We offer 2 years warranty for the TIG315P AC/DC. Spare parts and technical support are provided throughout the warranty period. We also maintain spare parts inventory for post-warranty service.
Related Products

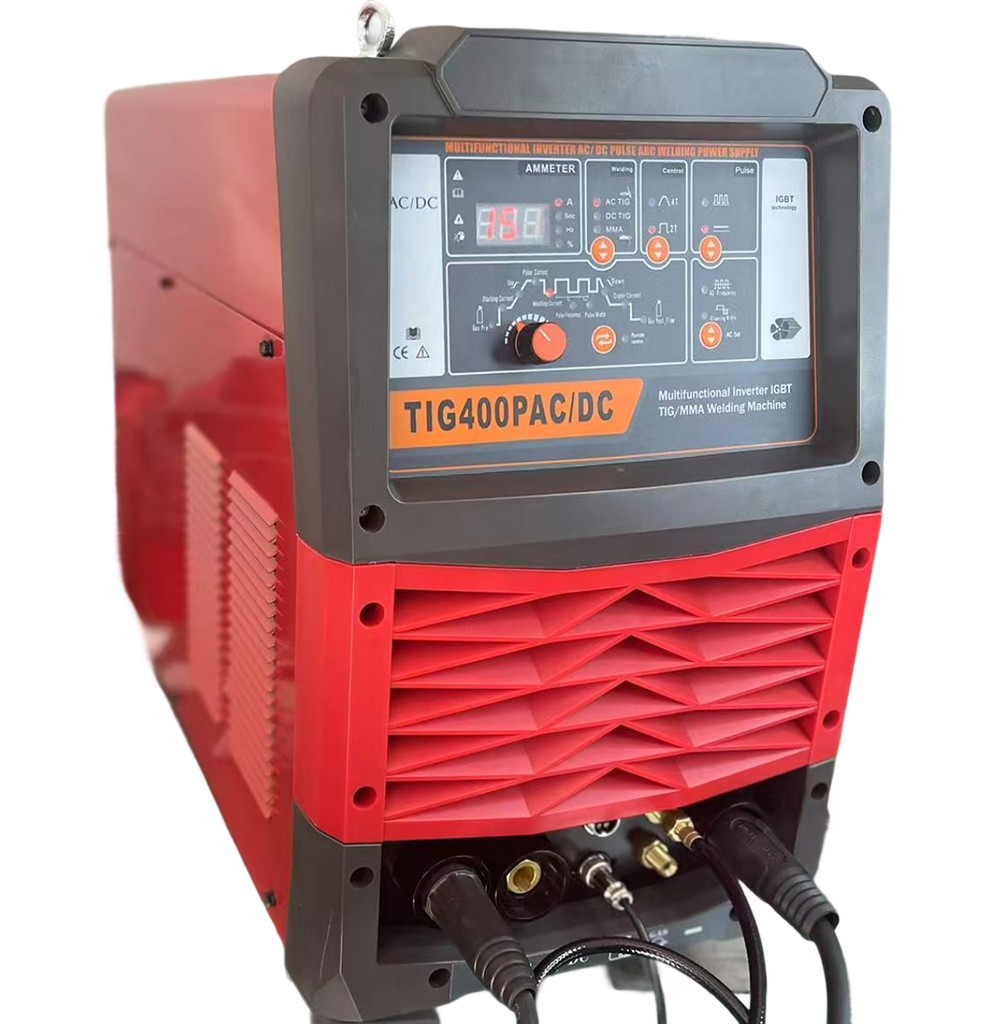

TIG400P AC/DC
400A of Water-Cooled TIG Power. Industrial Grade.

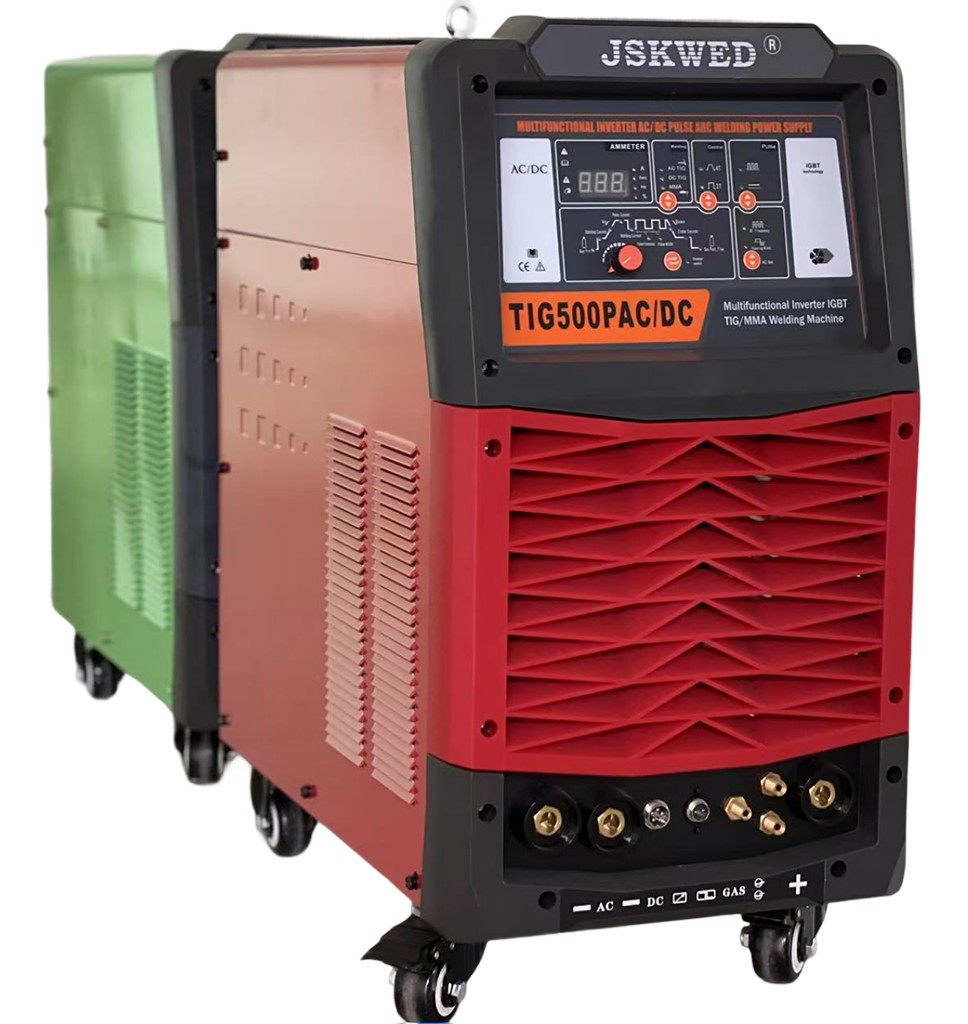

TIG500P AC/DC
